Description

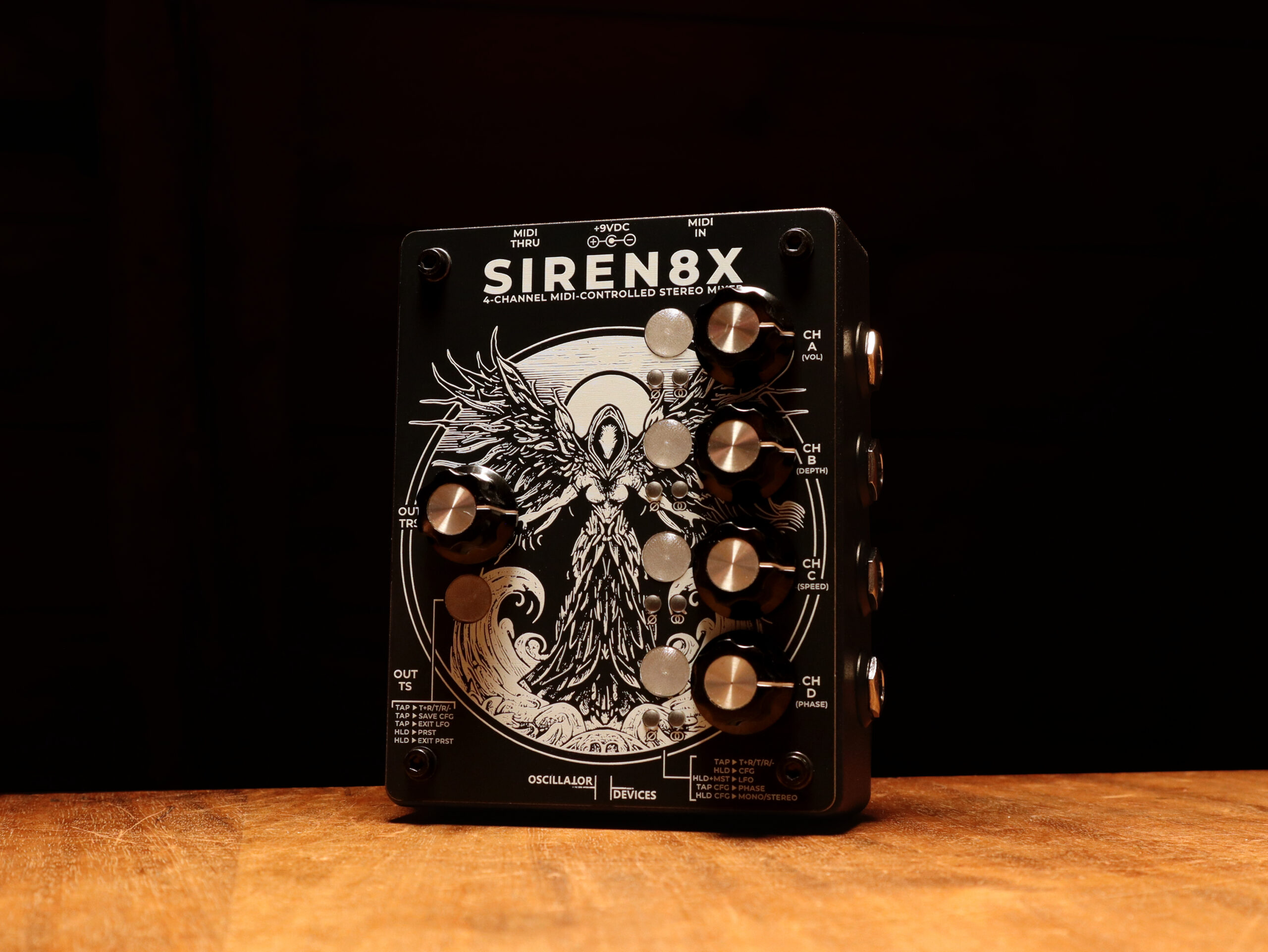

The Oscillator Devices SIREN8X is a 4-channel MIDI-controlled stereo mixer featuring four fully analog stereo channels. Each channel provides independent level control from -100 dB (mute) up to +10 dB of gain, while a dedicated master volume control adjusts the overall output level. For maximum flexibility, the Tip and Ring levels of every channel, including the master output, can be adjusted independently. The SIREN8X is designed to handle both instrument level and line level signals.
Each channel offers independent phase inversion and mono summing. This allows the SIREN8X to operate not only as a stereo mixer but also as a mono mixer with up to eight channels. Mono and stereo signal paths can be used simultaneously, making the SIREN8X well suited for complex routing setups, wet/dry rigs, and multi-amplifier systems.
Every channel includes two independent LFOs for volume modulation. Multiple waveforms, including sine, square, and forward or reverse ramp, are available. The LFOs can run freely with periods ranging from 100 ms to 1.2 s or be synchronized to MIDI clock for tempo-based modulation effects.
All parameters can be controlled via MIDI, and 32 onboard presets allow complete setups to be stored and recalled instantly.
Features:
- Up to 4 stereo channels, 8 mono channels, or any combination in between
- Smooth volume control via MIDI
- Fully analog signal path
- High quality, low noise buffers
- From -100 dB attenuation (Mute) to +10 dB gain
- Designed for instrument and line level
- TRS and TS compatible outputs
- 4×2 independent LFOs with 4 waveforms
- LFO tempo set by MIDI clock or free running
- 32 user presets
- Compatible with all MIDI 1.0 compliant controllers
- High-quality Neutrik connectors
- Developed and built by Oscillator Devices in Germany
For full specifications and documentation, visit the SIREN8X product page.
